Products / Hydraulic Pullers / Portable 100-Ton Pullers

Products
Number of
Jaws		 Capacity
Tons		 Model
Number
2 100 PH-102T
3 100 PH-102T
2/3 100 PH-102T
Dimensions Weight
lbs. (kg)

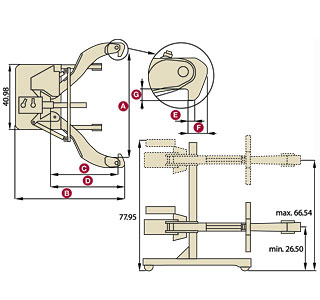

Spread Range (A) in.(mm) Overall Length (B) in.(mm) Maximum Reach (C) in. (mm) Jaw Length (D) in.(mm) Jaw Tip Width (E) in.(mm) Tip Clearance (F) in. (mm) Tip Depth (G) in. (mm)
191 to 1778 mm 1956 mm 1219 mm 1346 mm 32 mm 89 mm 89 mm 71 kg
191 to 1778 mm 1956 mm 1219 mm 1346 mm 32 mm 89 mm 89 mm 885 kg
191 to 1778 mm 1956 mm 1219 mm 1346 mm 32 mm 89 mm 89 mm 907 kg
