PHS-108/PHS-208 Posi Lock Self-Contained 12-Ton Hydraulic Pullers

The PHS-108/PHS-208 have many applications for all industries. These powerful, self-contained pulling systems are ideal for pulling a wide variety of press-fit parts, including bearings, gears, bushings, wheels and pulleys. You get the ease of a manual puller with the power of hydraulics.

Features and Benefits

  • 12 tons of pulling force
  • Self-contained hydraulic pump and cylinder
  • Easy hand-pumping hydraulic action
  • Swiveling, adjustable-length handle
  • T-handle clamps jaws securely
  • Forged and heat-treated jaws for superior strength
  • 3.3-inch (83 mm) ram stroke

PHS-108/PHS-208 Sets includes

  • Self-contained pump/cylinder with pump handle
  • Puller assembly with standard-length jaws
  • Extension rod with centering tip
  • 1.9-inch (48 mm) extension rod
  • 2.9-inch (74 mm) extension rod x 2
Model
Number
Capacity
Tons
Number
of Jaws
Maximum
Reach
in.(mm)
Spread
Range
in.(mm)
Height
in.(mm)
Weight
lbs. (kg)
PHS-108 12 3 8 in.(203 mm) 0.75 to 12 in.(19 to 305 mm) 24.5 in.(622 mm) 38 lbs.(17.24 kg)
PHS-208 12 2 8 in.(203 mm) 0.75 to 12 in.(19 to 305 mm) 24.5 in.(622 mm) 36 lbs.(16.33 kg)
- - Options
- - Long Jaws 9.8 in.(249 mm) 2.3 to 15.8 in.(58 to 401 mm) 26 in.(660 mm) 2.5 lbs.(1.13 kg) each jaw
- - Extra-long Jaws 16 in.(406 mm) 1.5 to 22 in.(38 to 559 mm) 30.5 in.(775 mm) 4.5 lbs.(2.05 kg) each jaw
- - Extension Rod - - 1.9 in.(48 mm)
2.9 in.(74 mm)
-

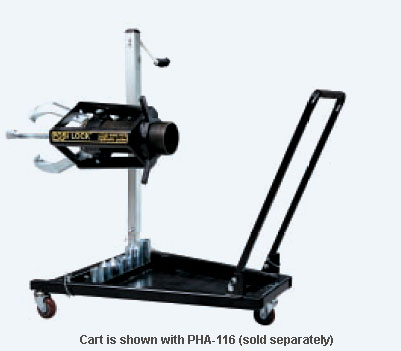

PT-3050 Hydraulic Lift Cart
The PT-3050 was designed for effi ciency and safety for the technician. Conveniently stores and transports hydraulic pullers and accessories. Available with 25- and 50-ton pullers. (Puller not included.)
Weight
:
97 lbs.(44 kg)
Lengths
:
39 in.(990.6 mm)
Width
:
32 in.(812.8 mm)
Height
:
6.5 in.(165.1 mm)
Lowest height
:
10 in.(254 mm)
Highest height
:
41.5 in.(1054 mm)

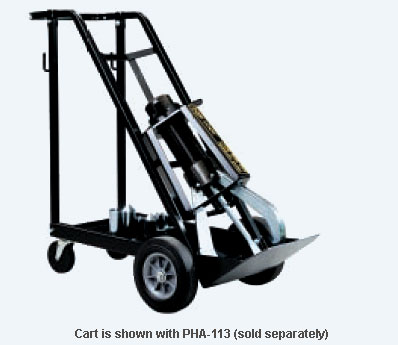

PT-2550 Puller Transport Cart
Conveniently stores and transports hydraulic pullers and accessories. (Puller not included.)
Weight
:
63 lbs. (28.6 kg)
?
